Rib-Peeling Threading Roller Machine HGS
  • Rib-Peeling Threading Roller Machine Type : HGS Processing range: Φ16-Φ40mm Main motor power: 7.5KW Spindle speed: 75r/min 1:19 Maximum processing length: 100mm for right-handed thread, 80mm for left-handed thread Threading Roller :Semicolon This machine processes high-precision straight threads on steel bar ends using a "peel then roll" method. The threads work with matching sleeves to form mechanical connections. A mainstream technology after cold-squeezing, it is widely used for its efficiency, energy savings, precise threads, and strong connections.
Inquire

Rib-Peeling Threading Roller Machine  HGS Type


Product Characteristic

Part  Name:

Rib-Peeling Threading

 Roller Machine

Rib-Peeling Threading

 Roller Machine

Rib-Peeling Threading

 Roller Machine

Rib-Peeling Threading

Roller Machine

Machine Type:HGS-40N HGS-50NHGS-50 CHGS-50E
Process rebar :

D12-D40

D16-D40D16-D50
D16-D40

Process rebar

length(mm):

100mm

100MM200MM300MM
Power supply:3P/380V /50HZ/60HZ3P/380V /50HZ/60HZ3P/380V /50HZ/60HZ3P/380V /50HZ/60HZ

Main motor

power(kw):

7.5KW7.5KW7.5KW7.5KW
Machine Size(mm): 1350*800*11001300*800*11501350*800*11001800*800*1100
Weight Kgs/set kgs400Kgs/Set
380Kgs/Set500Kgs/Set
650Kgs/set
Note : Support  Customizable Services



Thread rolling machine (4) (1).webp



Introduction:

This machine processes high-precision straight threads on steel bar ends using a "peel then roll" method. The threads work with matching sleeves to form mechanical connections.

A mainstream technology after cold-squeezing, it is widely used for its efficiency, energy savings, precise threads, and strong connections.

Product Advantage:

  • High Precision: "Peel-first" process ensures uniform, tight threads.

  • Superior Strength: Rolling produces threads stronger than the base steel.

  • Fast & Efficient: Automatic one-step operation; processes ends in 30–50 seconds.

  • Easy to Use: Highly automated with minimal training needed.

  • Cost-Effective: Lower sleeve cost and faster installation improve project efficiency.



Matched Machine

                                             Rib-Peeling Threading Roller Machine  HGS

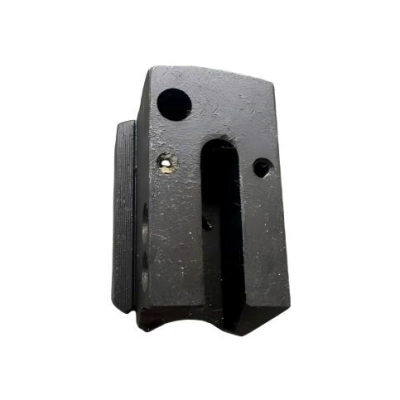

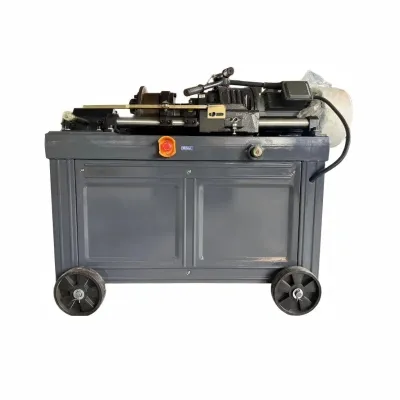

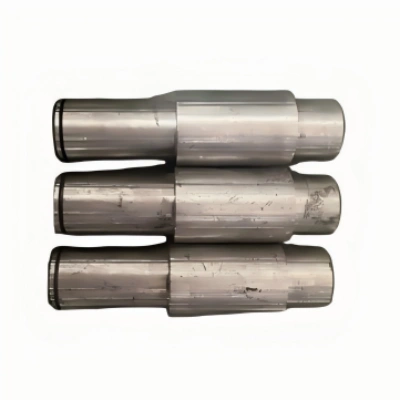

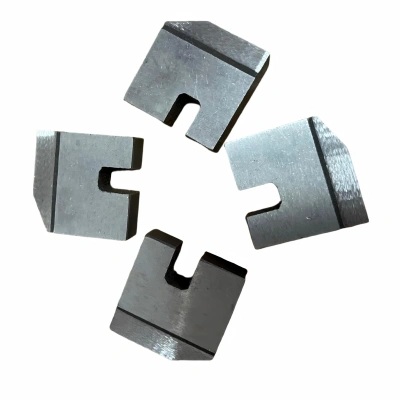

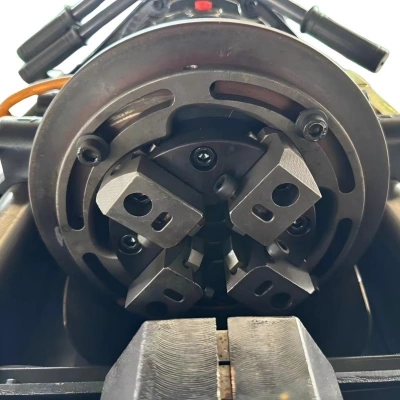

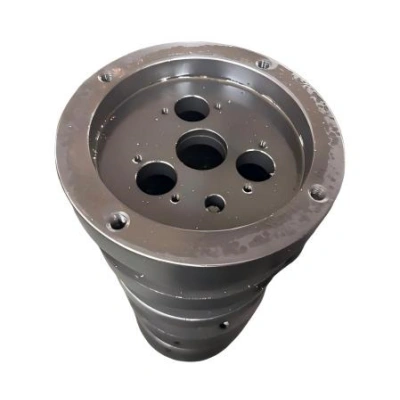

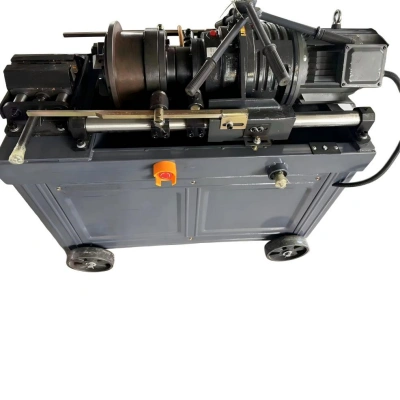

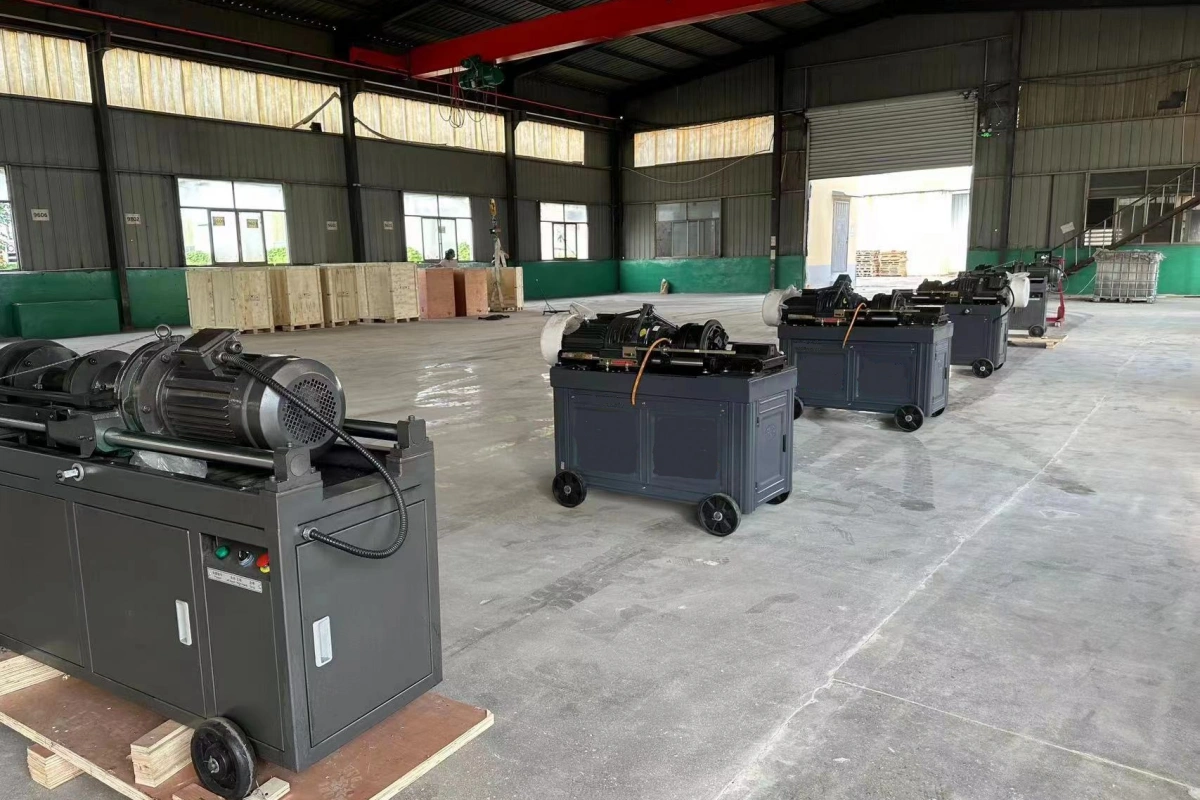

Thread rolling machine (2) (1).webpThread rolling machine (1) (1).webpThreading machine aaccessories (3) (1).webpThreading machine aaccessories (4) (1).webpBlade (1).webpthread roller (3).webpEccentric Shaft (1).webpBlade holder (1).webpThreading holder (1).webpmachine warehouse (1).webp
